Automatic Rotary Gripper Type Washing Machine

Laxmi Pharma Equipment is one of the leading manufacturers and exporter and Supplier of Automatic Rotary Gripper Type Washing Machine.

This is rotary type unit, Vials feed from the de-cartooning station are received on the Pneumatic Vial Lifting Device and then it will be move further, all the vials will be passed to the In feed Turn Table of the machine. From the Turn Table, the complete operation will be done automatically. The vials will be passed through the infeed Star Wheel and from there, the Vial Holder / Grippers picks up the vials and invert it in neck down position. The water jets and compressed air washing will be done as per the washing sequence provided.

WORKING PRINCIPLE

Once the washing process is complete, the washed vials will be again inverted and transferred to the Outfeed Star Wheel in a straight (neck upward) position, then It can be directly attached to the tunnel or collected in the trays / unloaded to the Turn Table. All the operations will be controlled through PLC & HMI and all controls are interlocked.

Automatic rotary gripper-type washing machines are advanced equipment commonly used in industries such as pharmaceuticals and food processing to clean and sanitize a variety of containers, including bottles, vials, and jars. Automatic rotary gripper-type washing machines provide an efficient and comprehensive cleaning and sterilization process for containers. Their working principle ensures that containers are thoroughly cleaned, making them suitable for pharmaceutical and food industries, where maintaining product quality and safety is of utmost importance.

APPLICATIONS

Pharmaceutical

Food & Beverages

Cosmetic

pesticides

chemical

SALIENT FEATURES

GMP model
Suitable to 2ml to 30ml Vials.
Gripper Assembly fitted with machine suitable for Vials.
S.S. Tanks as per model.
S.S. Imported Centrifugal Pumps.
3 Nos. of SS-16 Filter Housing with its nylon/PP Cartridges.
3 Nos. Pressure Gauges – Glycerin Filled. Pointer Make.

A. C. Frequency Drive for Speed Control.
Individual Solenoid Valve for Wash Media Operation.
All pipe fittings (Water Contacts) are of made from SS-316 material.
Push Button Based operating Controls.
Emergency Switch on Control Panel.
Out feed can connect directly to other machines or can collect it in the trays.

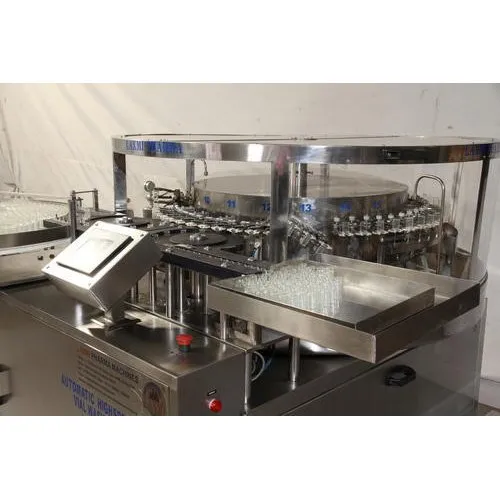

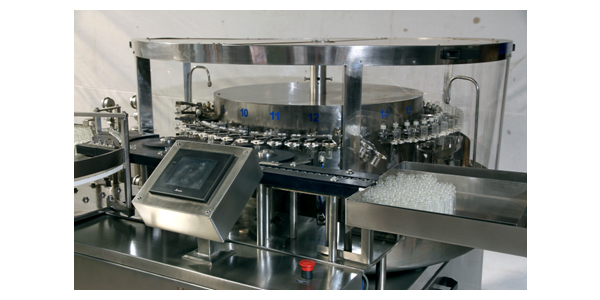

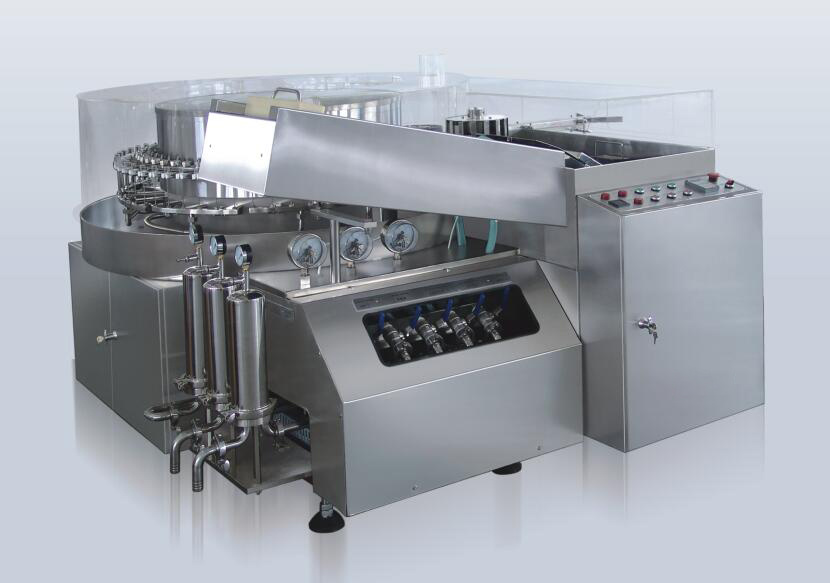

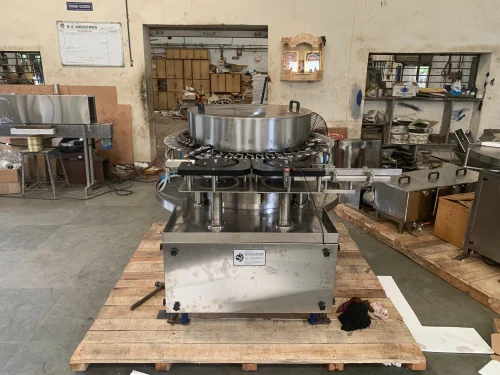

Product Images

TECHNICAL SPECIFICATION

Model	LRGVW-120	LRGVW-240
Washing Type	Rotary	Rotary
Grade	Automatic	Automatic
Suitability	Bottles / Vials	Vials
Bottle Diameter	Up to 50mm	Up to 30mm
Input/Output Type	Manuel / Automatic	Manuel / Automatic
Washing Zone	5	6
Pumps	2	2
Water Tanks	2	2
Output/Min	100-120 Bottles	200-240 Bottles
Dimensions (L X W X H)	1400 X 1600 X 1300	1450 X 1600 X 1300
