Automatic Linear Type Bottle Washing Machine

Automatic Linear Type

Automatic Linear Type Bottle Washing Machine

Laxmi Pharma Equipment is one of the leading manufacturers and exporter and Supplier of automatic linear bottle washing machines.

Once all bottles have been loaded on the feed tray, they can be moved along the wire mesh conveyor belt using oscillating guide rails to position the bottles correctly for insertion into the carrier pocket. The bottle is delivered inside the pocket with the mouth facing down over the spray nozzles using oscillating guides. The entire external and internal surface is washed by multiple-jet sprayers fixed at the top. Each washing station has a separate circuit to prevent any potential cross contamination between two different waters.

WORKING PRINCIPLE

The working principle of an Automatic Linear Type Bottle Washing Machine involves a series of steps to thoroughly clean bottles before they are filled with liquids or other products. This type of machine is commonly used in industries such as pharmaceuticals, beverages, and food processing.

When the indexing motion of the carrier pocket is complete, the needles are raised from the moving baskets. They enter the bottles, shoot pressurized air or water jets, and then descend. The baskets then move forward one station. Each bottle station goes through the chosen washing cycles.

Automatic linear Bottle Washing Machine is a compact model used for washing oral liquid Bottles. Bottles are fed through an S.S. wire mesh conveyor. Bottles are put into pockets in an inverted position when the Geneva assembly Rotate.


As a result of the move from Geneva to individual washing as provided by the washing cycles, the Bottle row moves continuously. Innere and Outer Side were washed by Bottle. With water strength and dry air strength. Customization of washing sequence according to customer needs. The Solenoid Valve is controlled Water jets only begin while washing and save expensive water. Now, washed containers are once again reversed upwards and placed straight on the tray for further processing conveyors.

APPLICATIONS

Pharmaceutical

Food & Beverages

Cosmetic

pesticides

chemical

SALIENT FEATURES

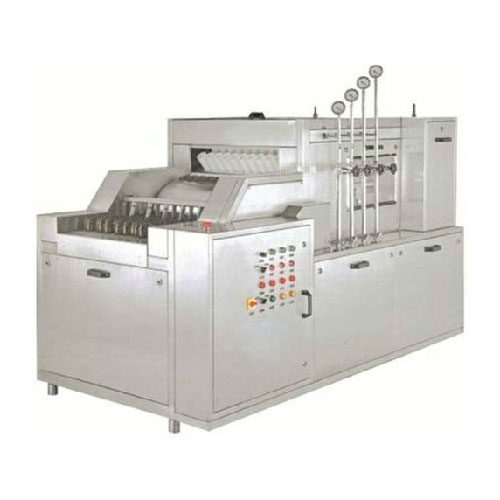

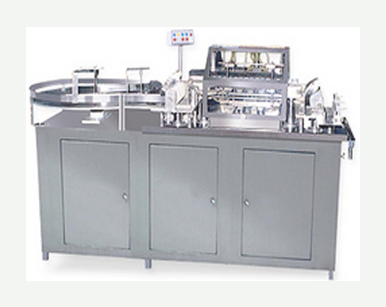

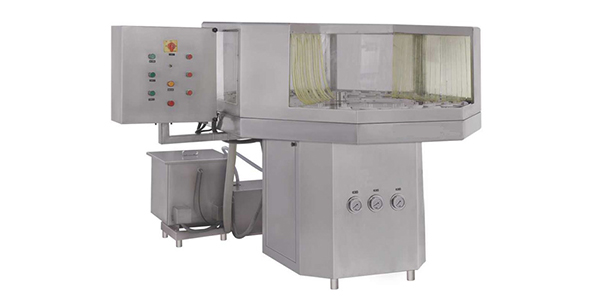

Product Images

Washing Machine

TECHNICAL SPECIFICATION

ModelLRBW-100LRBW-120LRBW-150
Washing TypeLinearLinearLinear
GradeAutomaticAutomaticAutomatic
SuitabilityBottlesBottlesBottles
Bottle Diameter30-60mm30-60mm30-60mm
Input/output TypeManuel on TTManuel on TTManuel on TT
No of Pockets101216
Pumps222
Water Tanks222
Output/Min70-100 Bottles100-120 Bottles120-150 Bottles
Dimensions (L X W X H)1200 X 2400 X 16001350 X 2400 X 16001450 X 2400 X 1600
Filtered Compressed Air30 CFM30 CFM30 CFM
Electricals415V , 3Ph415V , 3Ph415V , 3Ph
Power5 hp5 hp5 hp
Line ConnectionUp to MachineUp to MachineUp to Machine
Water Consumption/Hr400Ltr450Ltr500Ltr
