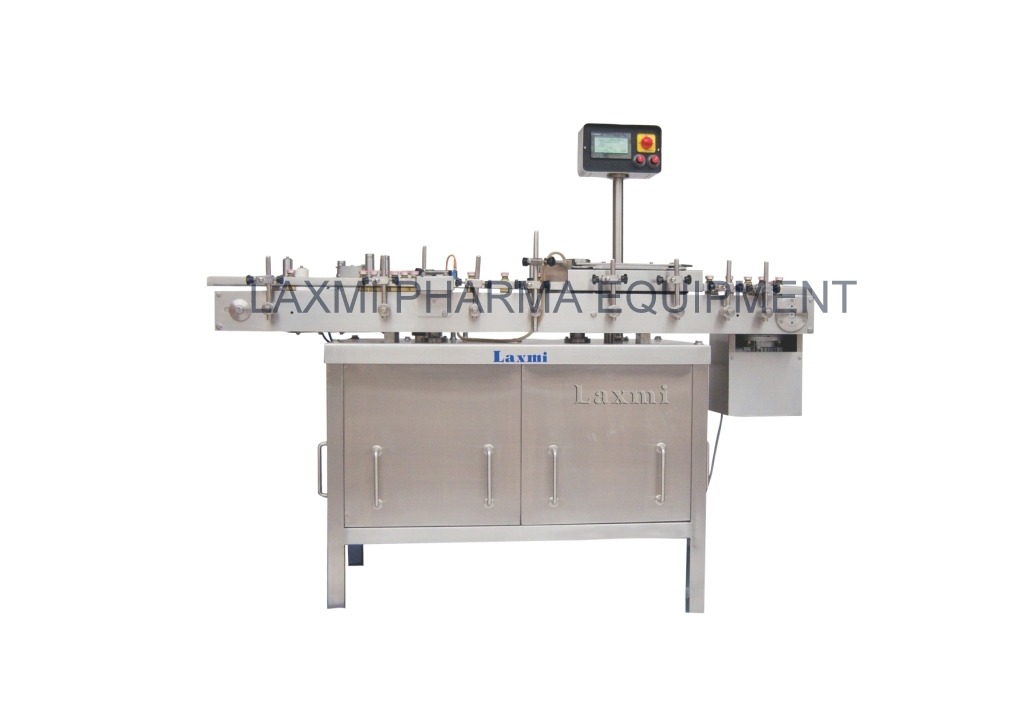

Automatic Sticker Labelling Machine
– For Vials

Laxmi Pharma Equipment is one of the leading manufacturers and exporter and Supplier of Automatic Sticker Labelling Machine – For Vials.

The user-friendly Vertical Linear Sticker Labelling Machine Model: LVSL series, Automatic High Speed Vial Sticker Labelling Machine from Laxmi Pharma Equipment is ideal for labelling previously filled and sealed spherical containers. To alter the size of a container, no new pieces are needed. A client has an additional benefit since the machine is servo motor controlled, allowing it to function at a minimum necessary output of up to 200 labels per minute, depending on the size and quality of the labels.

DOWNLOAD BROCHURE
WORKING PRINCIPLE
APPLICATIONS
SALIENT FEATURES
PRODUCT IMAGES
TECHNICAL SPECIFICATION
VIDEO GALLERY

WORKING PRINCIPLE

The most elegantly designed versatile linear labeling machine to meet the needs of major users of modern packing lines, requiring high efficiency with speed, accuracy, and durability. All the adjustments are completely user-friendly and require minimal tools.

The working principle of an Automatic Sticker Labelling Machine for vials involves a series of mechanical, electrical, and software components working together to accurately apply labels to vials.


APPLICATIONS

Pharmaceutical

Food & Beverages

Cosmetic

pesticides

chemical

SALIENT FEATURES

  • No change parts are required for change over of Vials size.
  • Synchronized speed of Label Dispensing, Conveyor and Pressing Device.
  • Easy to change label application height.
  • Self protected against any voltage fluctuations.
  • Suitable for On-Line Ink Jet and Contact Coding System.
  • Suitable for Partial, Full Wrap Around and Overlap Labeling.
  • High Production Speed up to 250 Vials/min.
  • PLC based system with touch screen HMI.
  • Conveyor & servo speed synchronized and controlled from HMI.
  • In built Speed Indicator & Counter.
  • There is no requirement of Oil or Grease for maintenance.
  • Online rejection system (if required).

Product Images

TECHNICAL SPECIFICATION

Model No.LVSL 80LVSL 100LVSL 150LVSL 200
Label Height10mm to 90mm10mm to 90mm10mm to 90mm10mm to 90mm
Label Length12mm Minimum12mm Minimum12mm Minimum12mm Minimum
Gap Between two labelsMinimum 3-5mmMinimum 3-5mmMinimum 3-5mmMinimum 3-5mm
Label Roll Dia.300/400mm300/400mm300/400mm300/400mm
Core Dia.25mm25mm25mm25mm
Power Characteristics220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw
Output/minute – Vials60-80 labels/minute80-100 labels/minute140-150 labels/minute180-200 labels/minute
Conveyor Height800-850mm800-850mm800-850mm800-850mm
Conveyor Length1500-1800mm1500-1800mm1500-1800mm1500-1800mm
