Automatic Sticker Labelling Machine
– For Bottle

Laxmi Pharma Equipment is one of the leading manufacturers and exporter and Supplier of Automatic Sticker Labelling Machine – For Bottle.

Laxmi Pharma Equipment provides a Vertical Linear Sticker Labelling Machine Model: LBSL series, Automatic High Speed Bottle Sticker Labelling Machine that is ideal for labelling previously filled and sealed spherical containers. Customers may operate the machine with a minimum necessary output of up to 250 labels per minute, depending on the label size and quality, thanks to the servo or stepper motor operation of the machine. Very few tools are needed to make any of the alterations, which are all rather user-friendly.

WORKING PRINCIPLE

Automatic Sticker labeling machines for bottles are used in various industries, including food and beverage, cosmetics, and pharmaceuticals, where consistent and accurate labeling is essential. These machines improve efficiency, reduce manual labor, and minimize labeling errors, resulting in a high-quality and professional appearance for the labeled products.

Bottles are placed on a conveyor or feeding system, which transports them to the labeling station. The conveyor can be designed to accommodate bottles of various sizes, shapes, and materials. A roll of adhesive labels is loaded onto the label dispenser of the machine. These labels are typically made of paper or plastic and come on a continuous roll. The machine unwinds the label roll, and a sensor detects the gaps or notches between individual labels.

APPLICATIONS

Pharmaceutical

Food & Beverages

Cosmetic

pesticides

chemical

SALIENT FEATURES

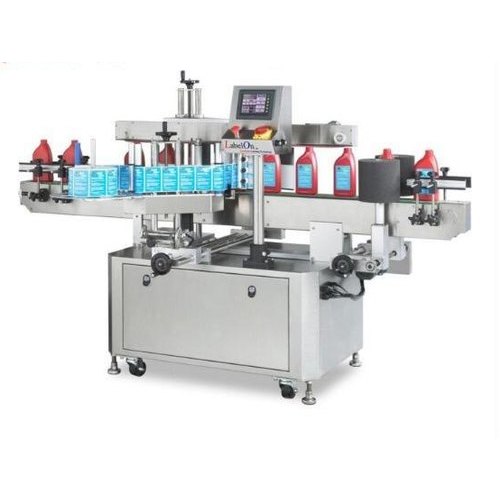

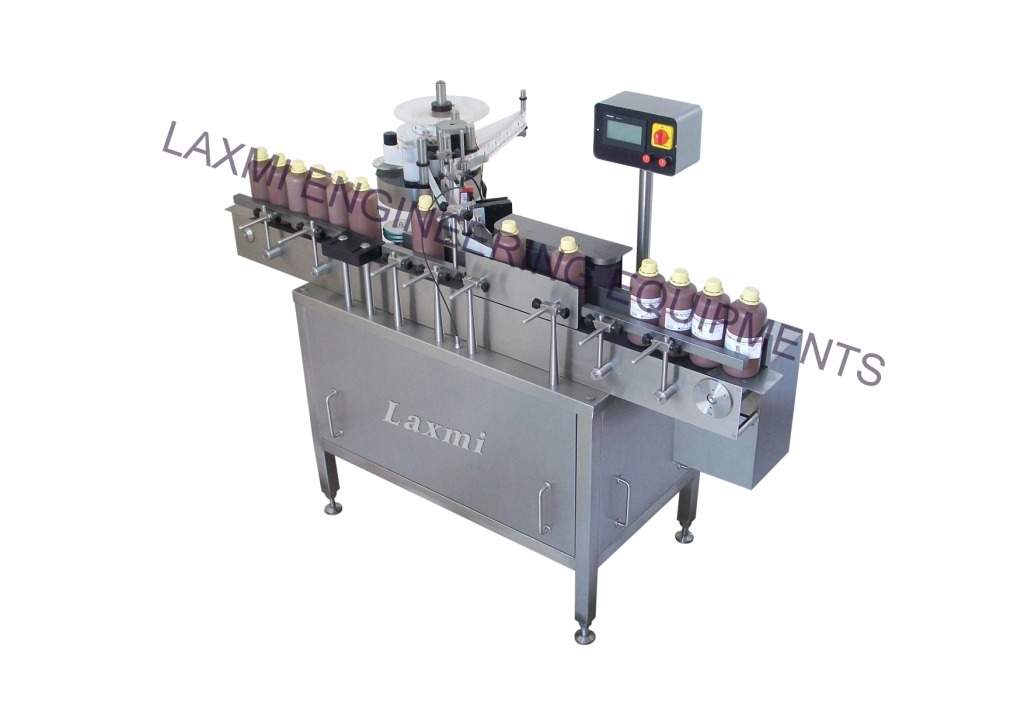

Product Images

TECHNICAL SPECIFICATION

Model No.LBSL 80LBSL 100LBSL 150LBSL 200
Label Height10mm to 90mm10mm to 90mm10mm to 90mm10mm to 90mm
Label Length12mm Minimum12mm Minimum12mm Minimum12mm Minimum
Gap Between two labelsMinimum 3-5mmMinimum 3-5mmMinimum 3-5mmMinimum 3-5mm
Label Roll Dia.300/400mm300/400mm300/400mm300/400mm
Core Dia.75/76mm75/76mm75/76mm75/76mm
Power Characteristics220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw220v, 1 Phase, 50Hz, 1.2kw
Output / minute60-80 labels/minute80-100 labels/minute140-150 labels/minute180-200 labels/minute
Conveyor Height800-850mm800-850mm800-850mm800-850mm
Conveyor Length1500-1800mm1500-1800mm1500-1800mm1500-1800mm
